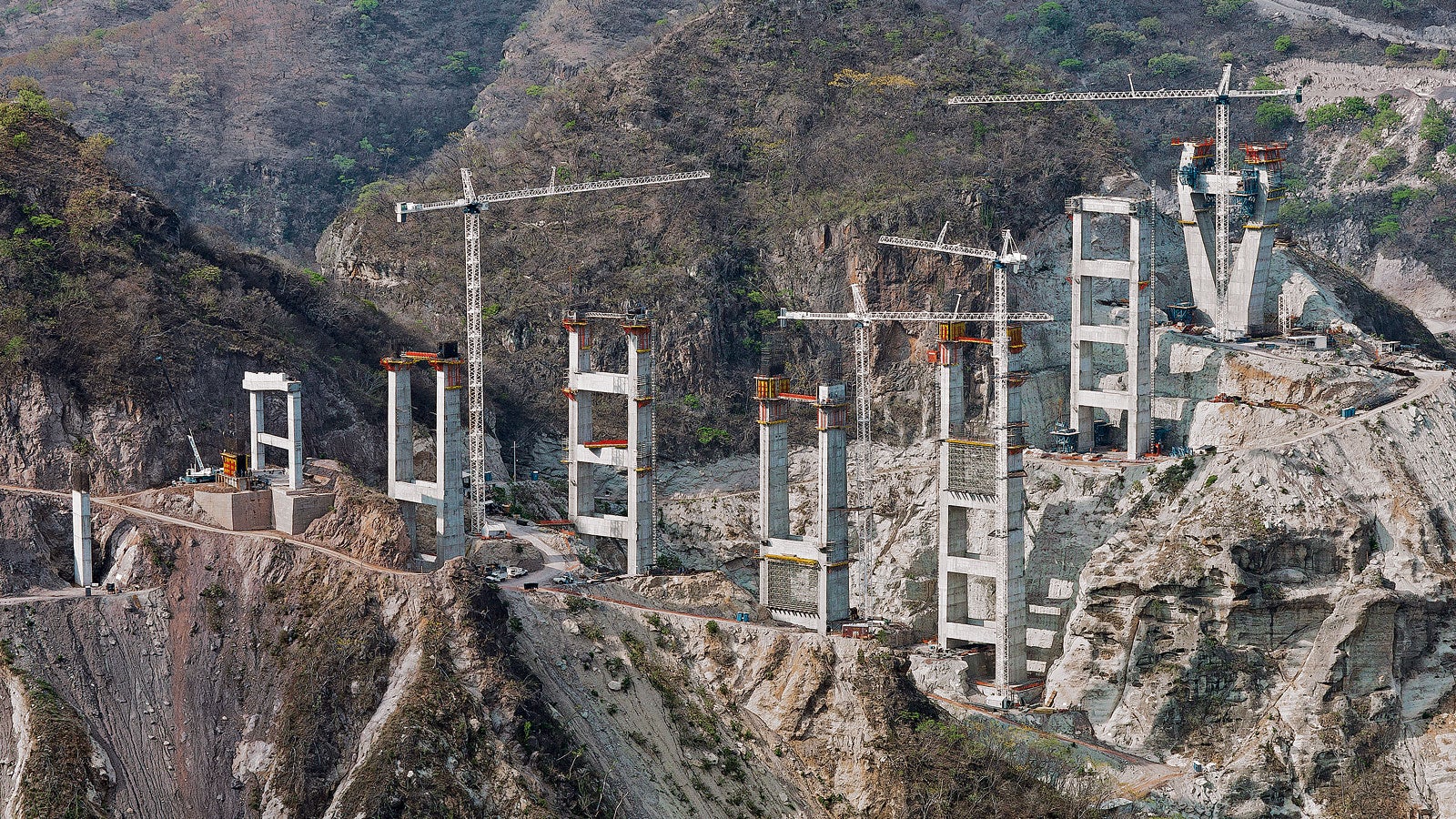

Puente Baluarte, Mexico - Apart from the two pylons, a total of nine double piers are being constructed on both sides of the ravine which are braced by means of massive cross beams.

Puente Baluarte
Baluarte, Mexico

Construction of 2 lozenged (diamond-shaped) bridge pylons for a cable-stayed bridge. Construction of 9 double piers, braced via solid crossbars.
At the time of construction, the Puente Baluarte is the third highest bridge in the world.

Height bridge pylons: 169 m and 156 m

Height double piers: max. 145 m

Total length of bridge: 1,124 m

Span of main bay: 520 m

Width of bridge superstructure: 20 m

Depth of the canyon to be spanned: ca. 400 m

Construction period until completion: 2008 - 2012





Location
Baluarte
Main Application
Civil Engineering
Project participants
Customer: TRADECO Infraestructura, S.A. de C.V.

The Project

Impressions from the project process

Project Information

Puente Baluarte - Salvador Sánchez Núñez, Project Manager
Puente Baluarte - Salvador Sánchez Núñez, Project Manager
Salvador Sánchez Núñez
Project leader
We are extremely satisfied with the PERI systems and the efficient engineering – we were able to considerably accelerate the climbing cycles thanks to ACS. Despite the great height, we were able to work safely on the working platforms. Furthermore, we achieved excellent concrete surfaces, our customer is very satisfied.
