The Project
Impressions from the project process

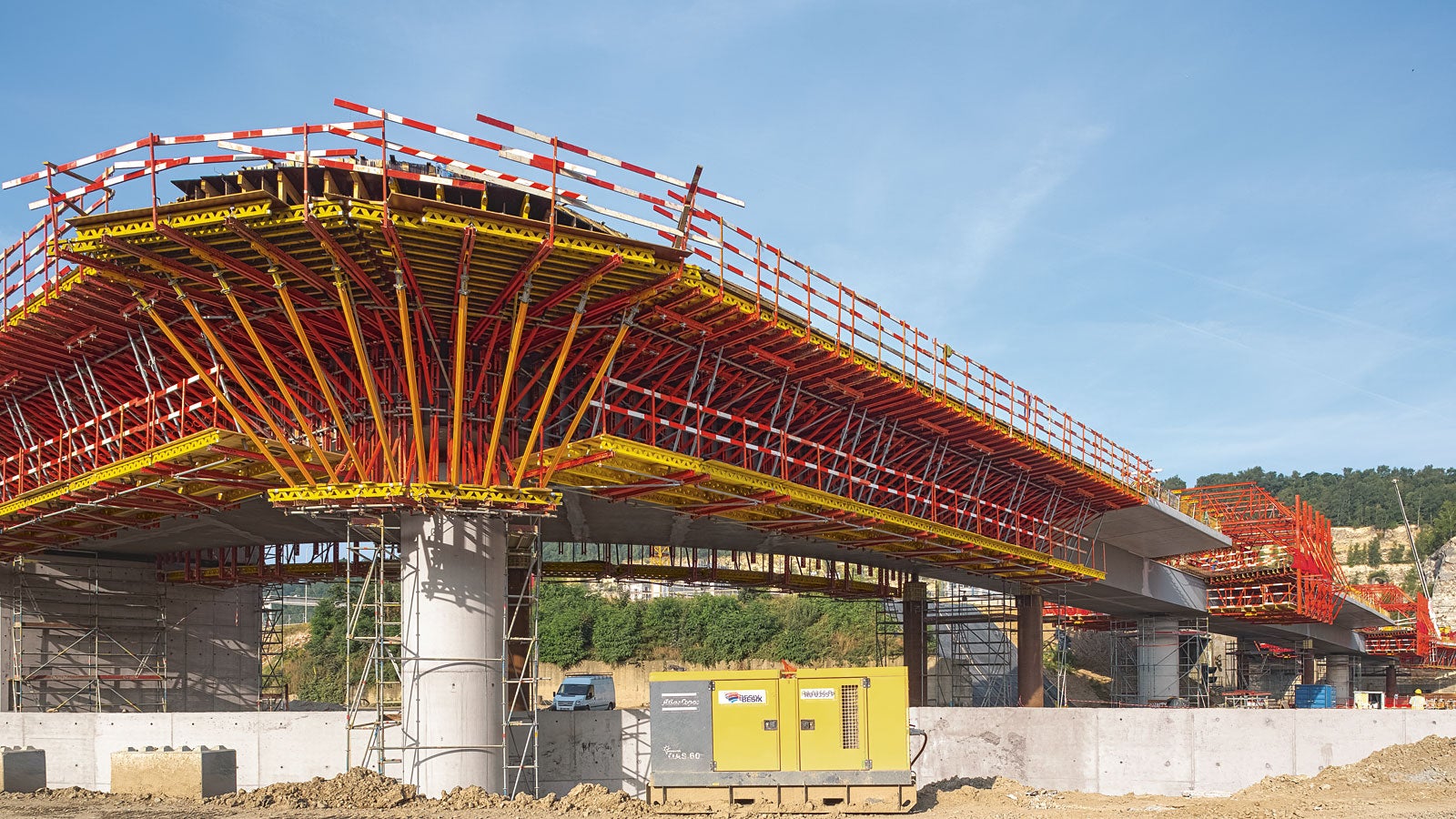

In the complex area with an extremely tight outer radius, the concentrated loads of the radially-arranged cantilever brackets are transferred into the available bridge piers by means of pressure supports.

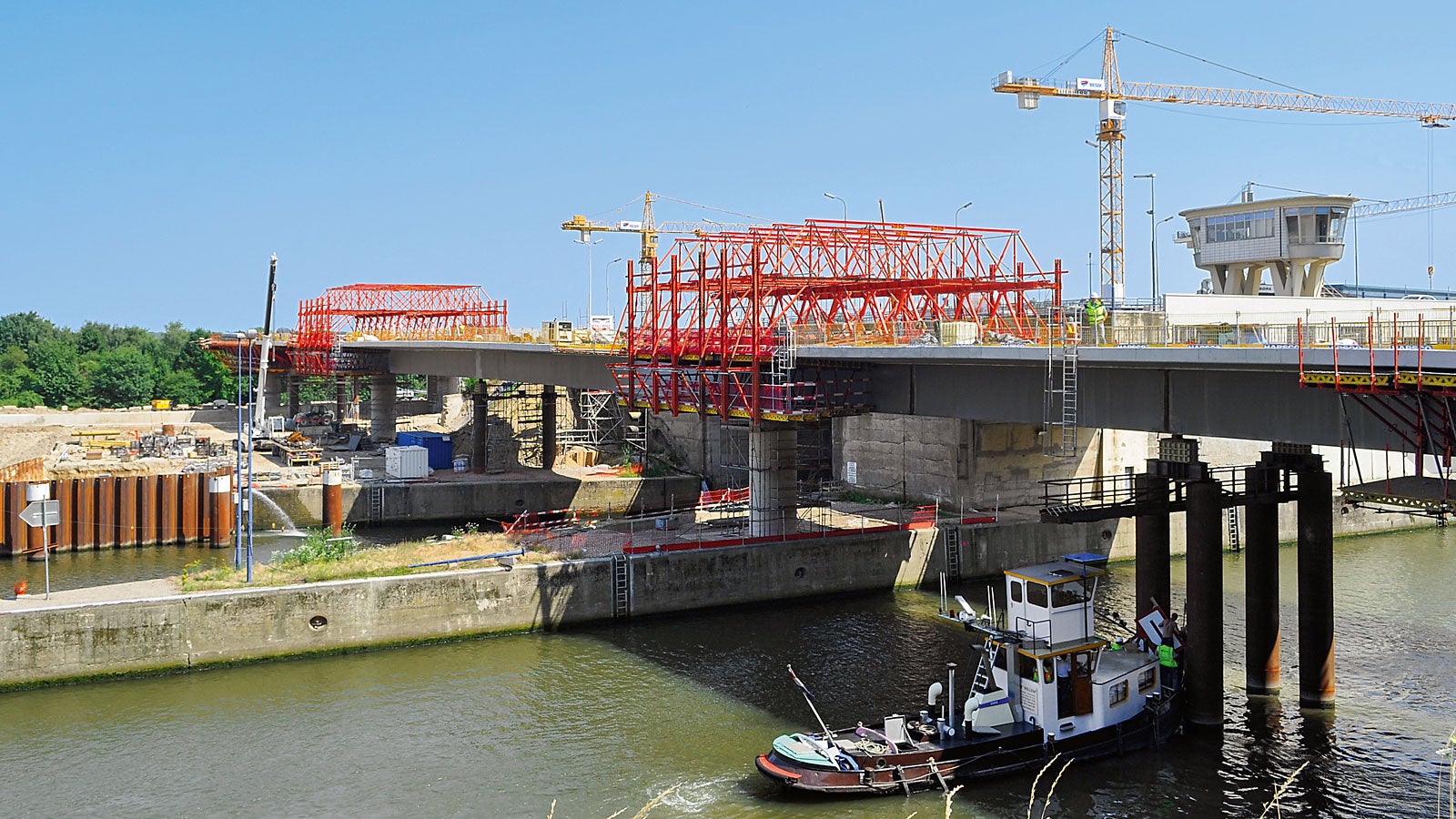

The expansion of the Lanaye lock facility required the new construction of a 200 m long road bridge.

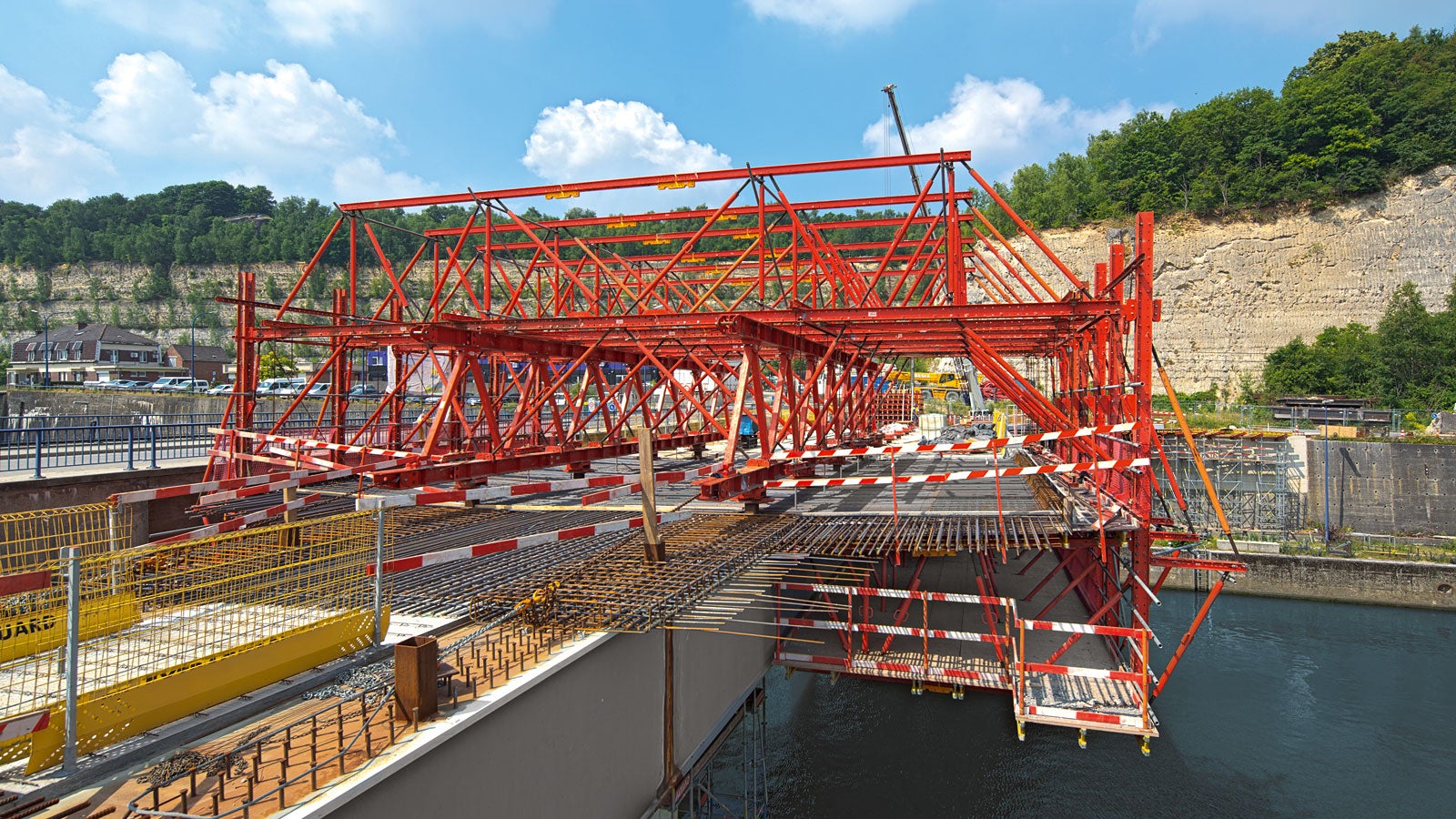

The VARIOKIT steel composite formwork carriage could be adapted to match the geometrical and static requirements which included 4.50 m cantilevers.

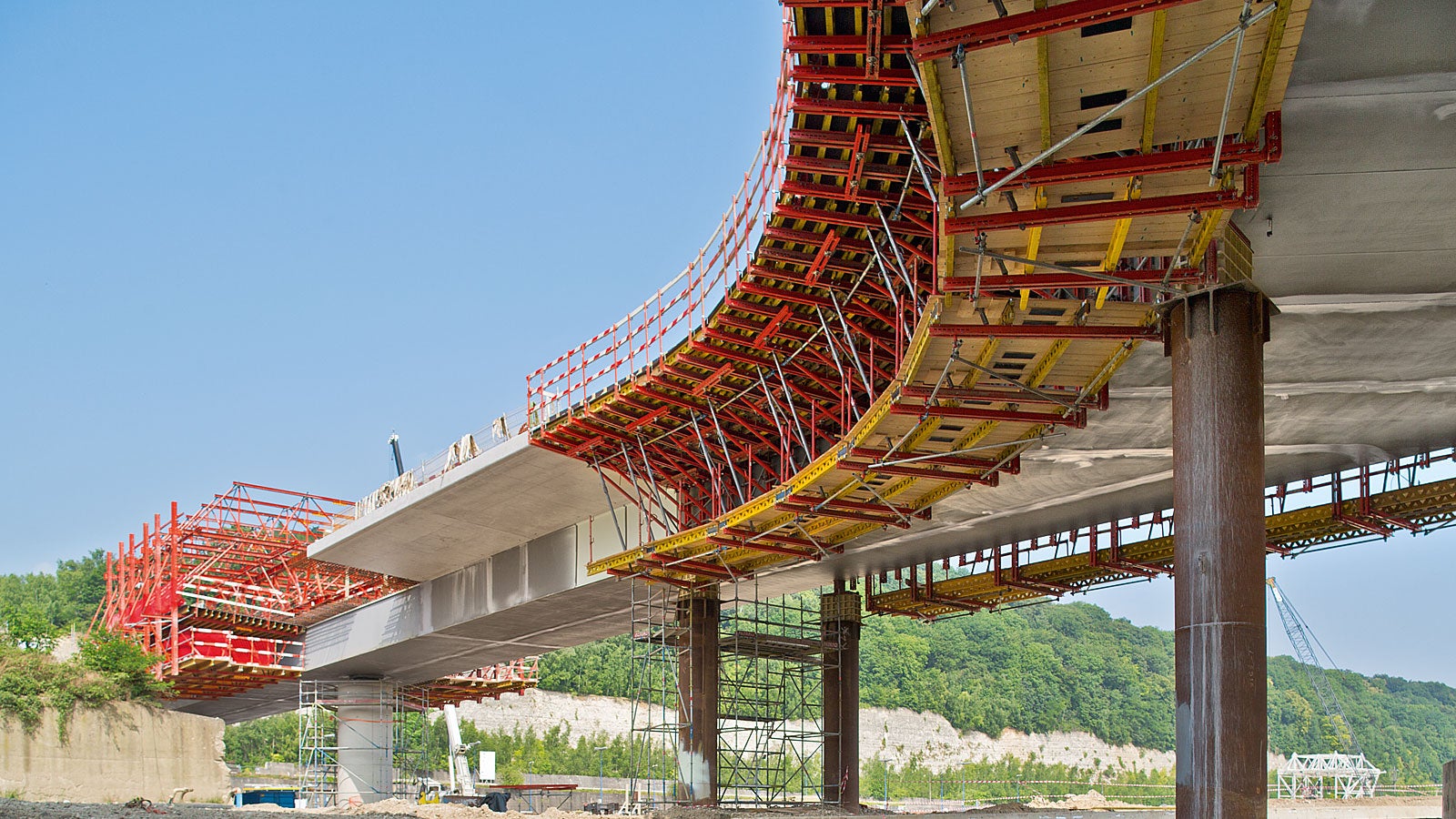

Construction of the steel composite bridge was carried out using formwork carriages and cantilever brackets – both based on the VARIOKIT modular construction kit.

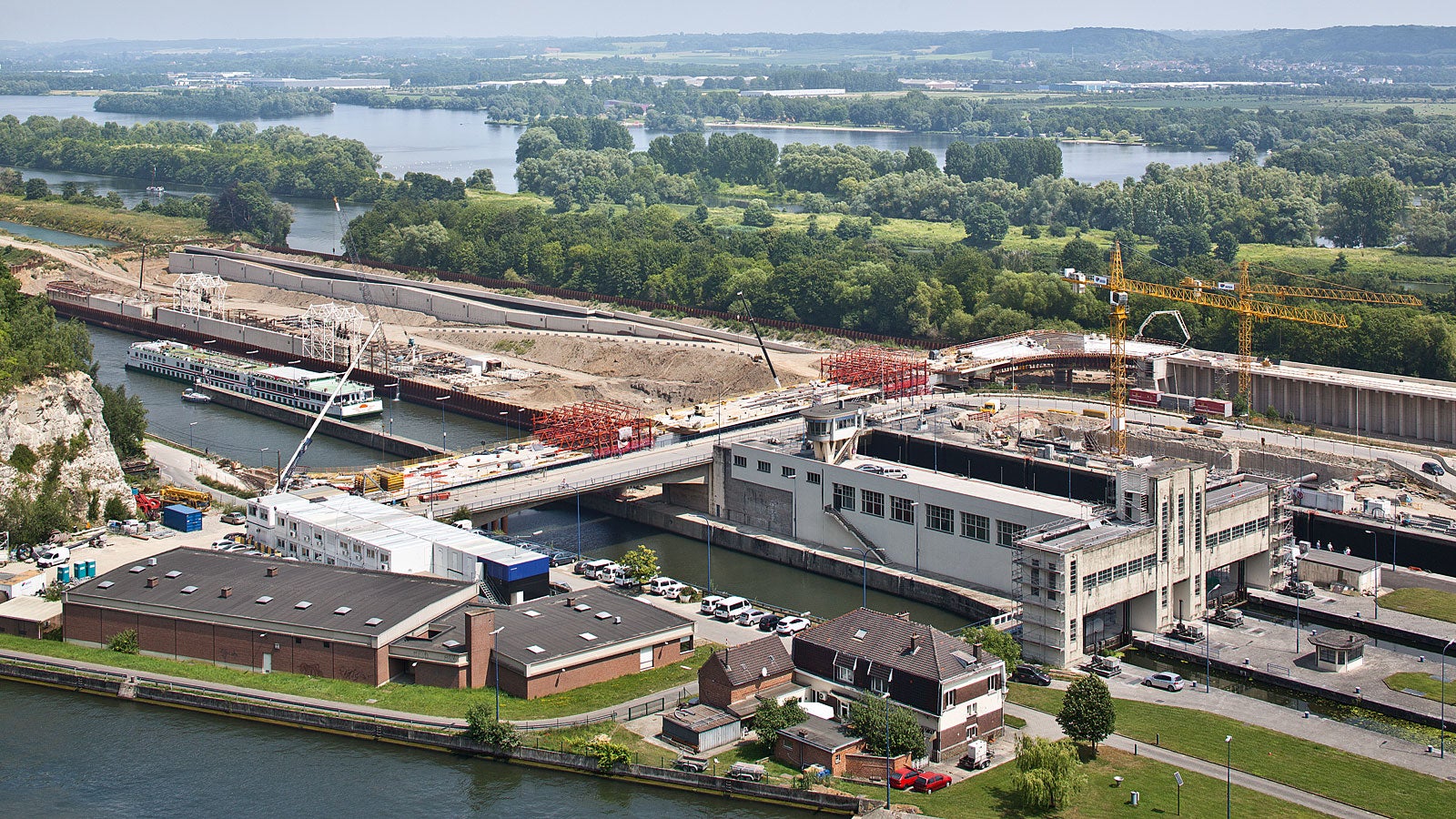

On both banks of the river, the bridge construction features two 90° bends - with extremely tight axis radii of almost 30 m respectively.
Project Information
Pedro de Guia
Technical Manager
Due to our positive experience with similar projects, we decided once again in favour of PERI. Their technical support within the framework of the tight schedule as well as the project solution using the formwork carriage and cantilever brackets have confirmed our decision.
Are you working on a project like this?
Call us on +966 (0) 11 230 0655 to discuss your requirements further.
Location
Lanaye Lock Bridge, Belgium
