At PERI Saudi Arabia, we work with contractors, formwork specialists, precast manufacturers, and infrastructure projects across the Kingdom. Over time, one thing becomes clear:
Film faced plywood is not a commodity product. Its real value is determined by how it is manufactured.
What Is Film Faced Plywood?
Film faced plywood is an engineered wood panel designed mainly for concrete formwork applications.
It is manufactured by bonding multiple thin wood veneers together under pressure and heat. The panel is then coated on both sides with a phenolic film that creates a smooth, water-resistant working surface.
The film serves several important purposes:
- protects the wood from moisture
- reduces concrete adhesion
- improves concrete finish quality
- increases reuse cycles
- facilitates cleaning after pouring
This type of plywood is widely used for:
- slab formwork
- wall formwork
- columns
- infrastructure projects
- precast concrete
- industrial formwork systems
In Saudi Arabia, where projects are exposed to extreme temperatures and intensive reuse conditions, plywood quality becomes even more important.

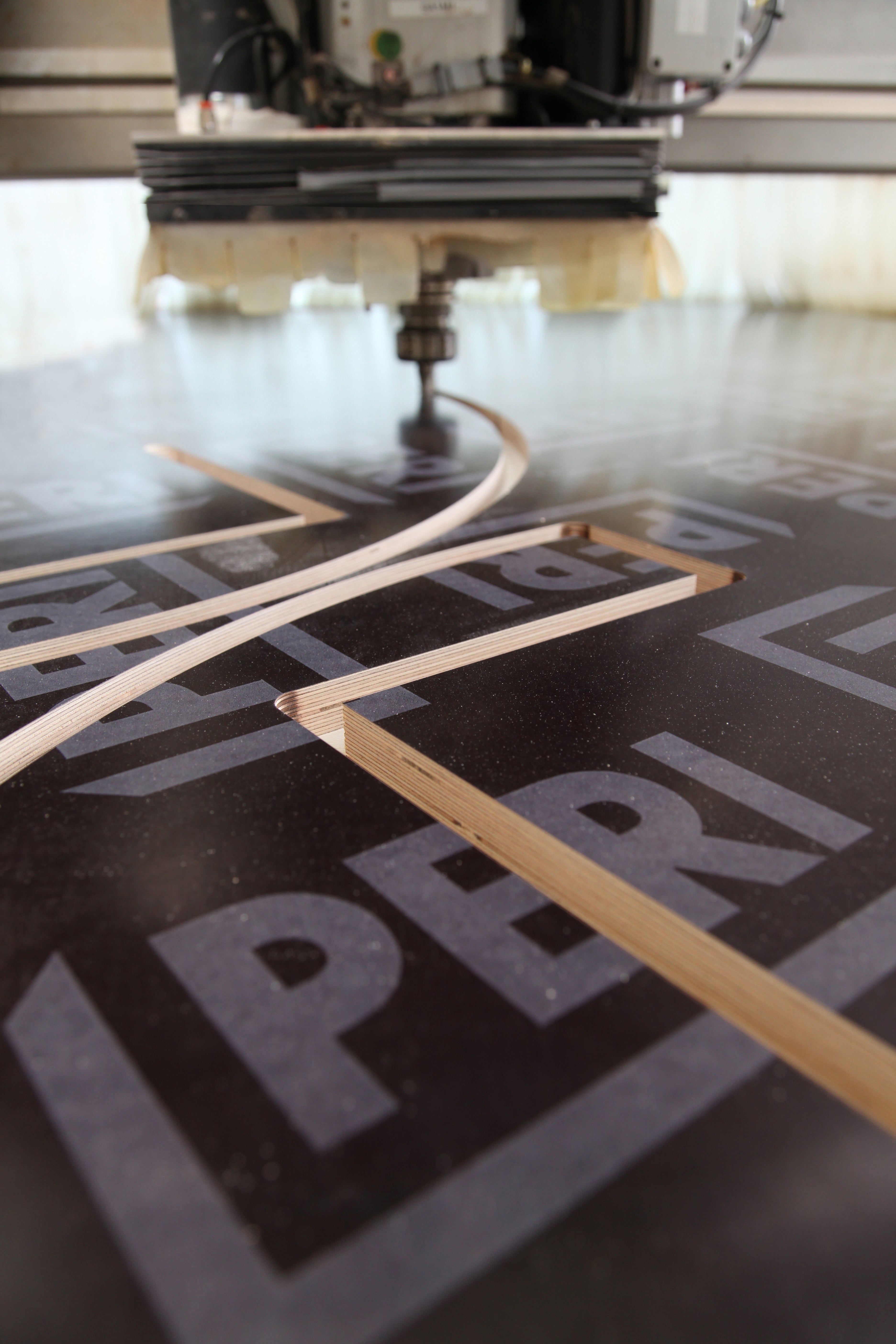

How Plywood Is Manufactured
Most people only see the finished panel. The real difference in performance comes from what happens inside the factory.
1. Log Selection

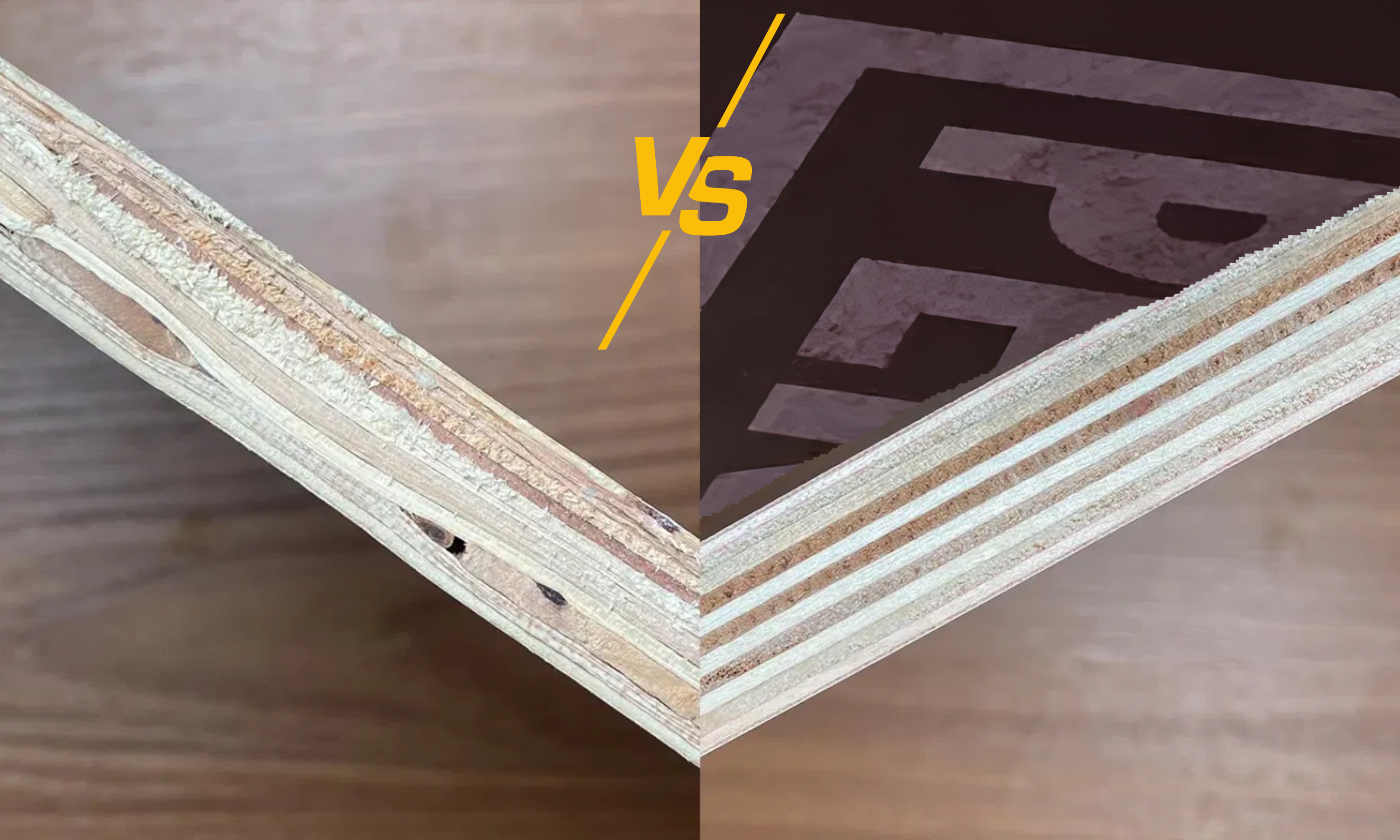

Everything starts with the wood species and veneer quality.
Film faced plywood can be manufactured using:
- Poplar
- Birch
- Eucalyptus
- Mixed hardwood veneers
Each material behaves differently.
Poplar Veneers : Lightweight and economical. Easier to handle on site.
Birch Veneers: Denser and stronger, often used for high-performance plywood.
Hardwood Core: Provides increased density and durability.
The quality of the raw veneers has a direct impact on:
- panel strength
- moisture resistance
- reuse cycles
- concrete finish consistency
Low-quality veneers often contain:
- overlaps
- cavities
- core voids
- inconsistent density
These defects reduce structural performance and shorten panel lifespan.
2. Rotary Veneer Peeling
The logs are first soaked in hot water to soften the fibers.
They are then peeled using a rotary lathe, producing continuous veneer sheets.
The process is similar to unrolling paper from a roll.
After peeling, the veneers are:
- dried
- calibrated
- repaired
- sorted by grade
Higher-quality veneers are usually reserved for the face and back surfaces.
3. Cross-Grain Construction
The veneers are assembled with alternating grain directions.
This cross-layer structure is what gives plywood its dimensional stability.
Instead of expanding or shrinking heavily in one direction, the stresses are distributed throughout the panel.
This improves:
- bending resistance
- stability
- load distribution
- resistance to warping
Without cross-grain assembly, plywood would deform much more easily under moisture and heat exposure.
4. Glue Application: The Heart of Formwork Plywood
The adhesive system is one of the most critical components in film faced plywood manufacturing.
For formwork applications, high-quality panels typically use WBP phenolic glue.
WBP = Weather and Boil Proof
WBP glue is designed to resist moisture, boiling water, and repeated construction site exposure.
Premium plywood panels can withstand long-duration boiling tests without delamination.
In practical terms, this means:
- stronger internal bonding
- improved moisture resistance
- better durability on site
- longer reuse cycles
Lower-grade plywood often uses cheaper adhesive systems that may initially look acceptable but fail much faster under real construction conditions.
Understanding Film Faced Plywood Quality
Not all film faced plywood uses the same film.
This is an important point often overlooked during procurement.
The phenolic film quality directly affects:
- abrasion resistance
- water protection
- surface smoothness
- concrete release performance
Premium European phenolic films generally provide:
- better wear resistance
- more stable surface quality
- improved durability under repeated use
Low-grade film coatings may:
- crack early
- detach from the panel
- allow moisture penetration
- reduce reuse cycles
PERI Saudi Arabia Plywood Solutions
At PERI Saudi Arabia, different plywood solutions are available depending on project requirements, expected reuse cycles, and budget considerations.

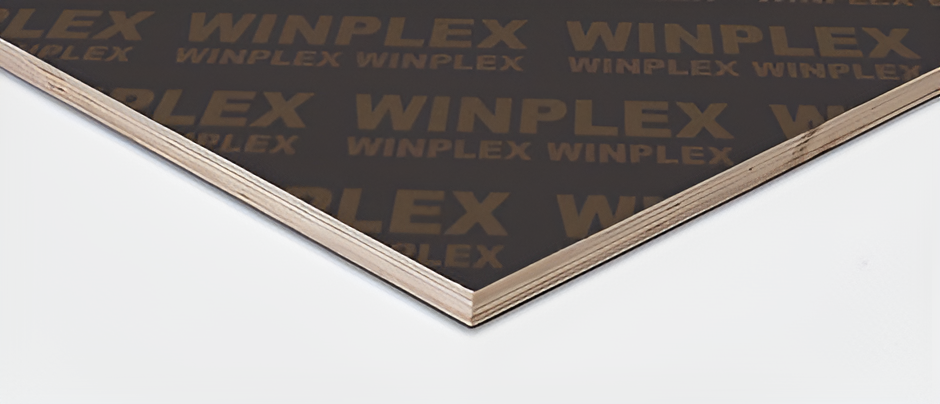

Winplex - Economical Full Poplar Film Faced Plywood
Winplex is a lightweight full poplar plywood solution designed for economical formwork applications.
Main characteristics:
- Full poplar core
- Lightweight handling
- One pressing cycle
- Film faced surface
- Cost-effective solution
Suitable for:
- standard slab applications
- short-term projects
- projects with moderate reuse expectations
Its lighter weight also makes handling easier for site labor teams.

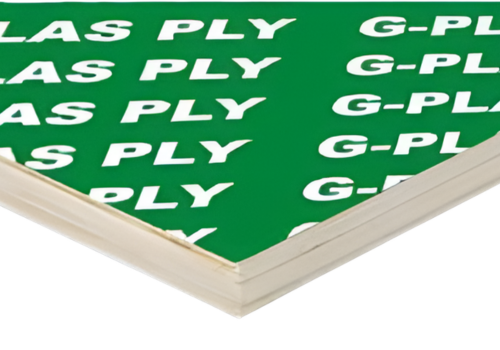

GPlas Ply - Green Plastic Plywood
GPlas Ply is a plastic-coated plywood manufactured using poplar veneers and double pressing technology.
Compared to conventional film faced plywood, plastic plywood offers:
- improved water resistance
- easier cleaning
- enhanced abrasion resistance
- reduced concrete adhesion
This type of panel is increasingly appreciated on projects requiring repetitive use under harsh conditions.

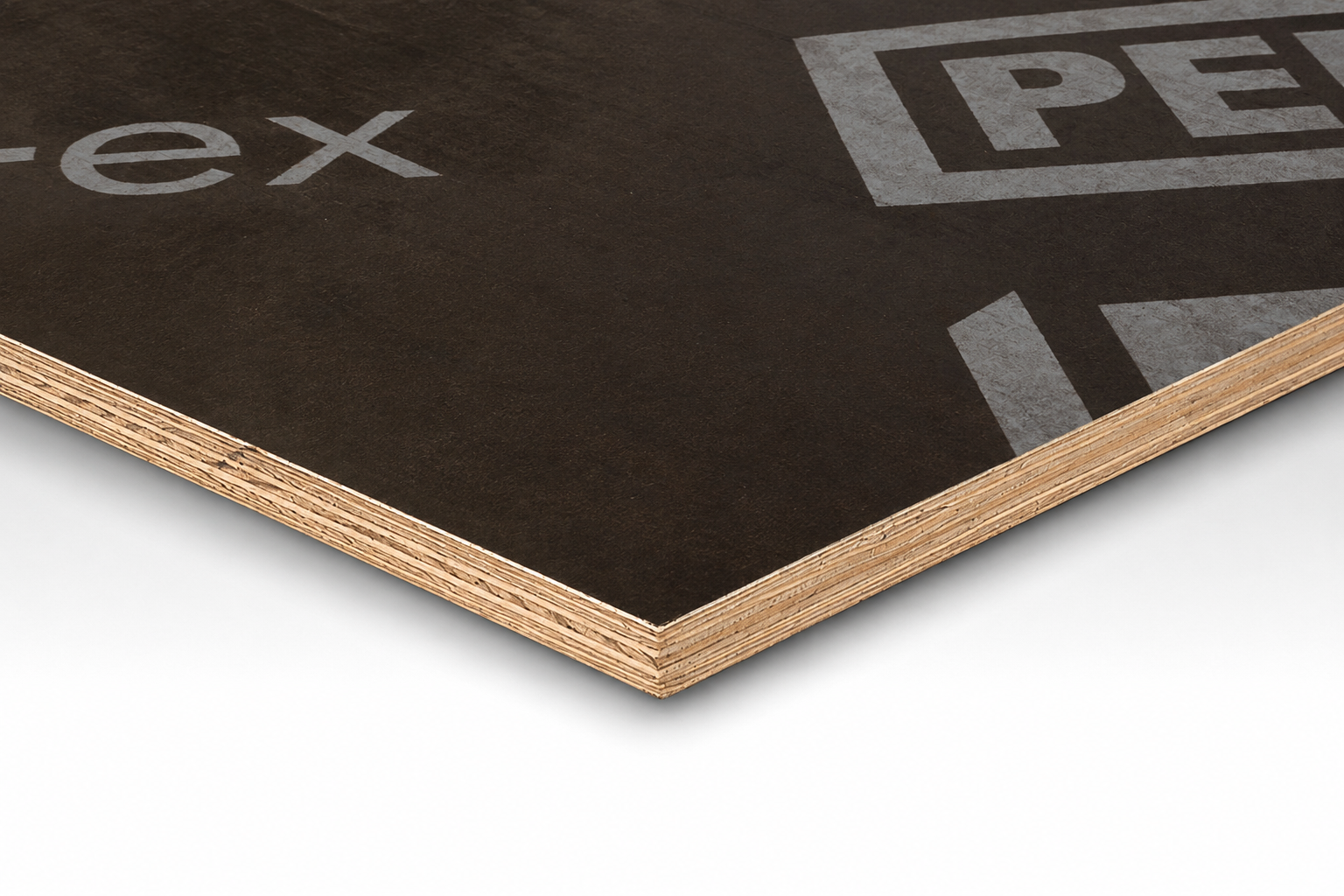

PERI Q-Plex - Premium Chinese Formwork Plywood
PERI Q-Plex is considered one of the highest-quality Chinese plywood solutions available on the Saudi market.
Technical characteristics include:
- Triple pressing process
- WBP 72-hour bonding performance
- Phenolic glue system
- Very high quality phenolic film
- High-density structure
- Excellent concrete finish quality
- PERI Logo
The panel is specifically designed for contractors looking for:
- higher reuse cycles
- reduced replacement frequency
- better long-term value
- consistent concrete finish results
Unlike many commodity plywood products, the focus is not simply on purchase price per sheet, but on total performance over the life of the panel.
